The Anatomy of Modern Web Architecture

A Deep Technical Dive from Traditional CMS to Static Site Generators (SSG) and Next-Generation Rendering Strategies

The web development ecosystem is undergoing a radical evolution, driven by the ever-increasing demands for performance, scalability, and security. The sluggishness of traditional monolithic Content Management Systems (CMS), the significant processing overhead they create on the server side, and their persistent security vulnerabilities have forced modern engineering toward much more agile and secure architectures.

Particularly for developers actively building e-commerce platforms or prioritizing system security (DevSecOps), architectural decisions now go far beyond the simple question of "which language to use." In this guide, we will examine the journey from traditional CMS systems to Static Site Generators (SSG), explore modern rendering strategies, and analyze the current state of the end-to-end web ecosystem as a technical anatomy problem.

Quick Summary

• Cost-Performance: For content-driven projects, SSG often provides the best cost-performance balance.
• Hybrid Models: For dynamic products, hybrid models like SSR/ISR are inevitable.
• Modern Stack: PERN/Next.js for e-commerce, and .NET for enterprise SaaS are recommended.
• Security: The most critical issue is no longer just code vulnerabilities, but software supply chain risk.
• Architectural Decision: There is no "best tool"; only the "right scenario match."

1) Why Are We Moving Away from cPanel-Centric Thinking?

For years, the backbone of the web was the LAMP stack—composed of Linux, Apache, MySQL, and PHP—and traditional Content Management Systems (CMS) like WordPress built upon it. However, a traditional CMS must connect to the database, fetch data, and assemble the HTML on the server in real-time every time a user requests a page. This leads to server bottlenecks during sudden traffic spikes while leaving a wide surface for external attacks like SQL Injection or server-side RCE (Remote Code Execution).

Traditional monolithic architecture flow: Database and server dependencies lead to performance bottlenecks.

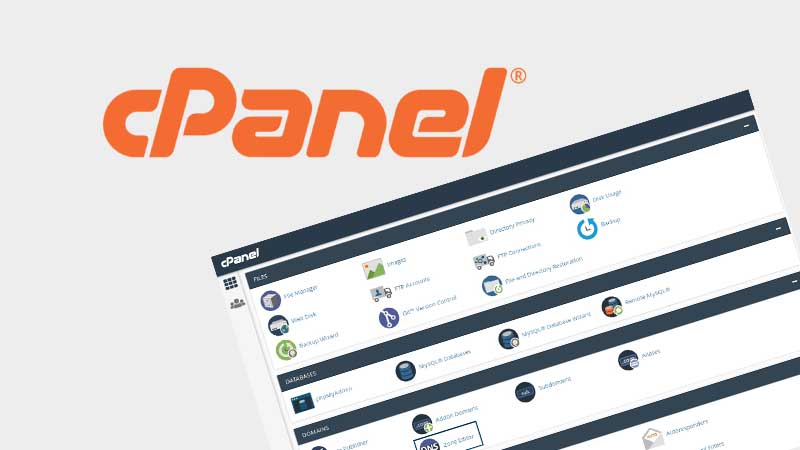

Classic cPanel environment: An easy but broad attack surface "server management" model.

This workflow is functional in classic hosting models (cPanel, Plesk, etc.), but it generates three persistent costs:

• Performance Cost: Dynamic calculation and database latency for every request. When a visitor enters your site, PHP wakes up, a MySQL query is executed, and the page is built at that moment. This "Just-in-Time" approach is a hurdle in the modern web where milliseconds are vital.
• Security Cost: A large attack surface created by the combination of the panel + plugins + application runtime. Every unnecessary runtime is an unnecessary cyber risk area.
• Operational Cost: Patch management, version compatibility, and continuous monitoring overhead.

The primary reason we are moving away from the old server-setup-and-manage model is to focus on "serving the result directly" rather than "managing the infrastructure."

2) The Anatomy of Rendering: CSR, SSR, SSG, ISR

Today, how a web application is drawn on the screen determines how the system will handle millions of users without crashing. Modern web engineering is shaped around four core strategies based on where and when the HTML is generated:

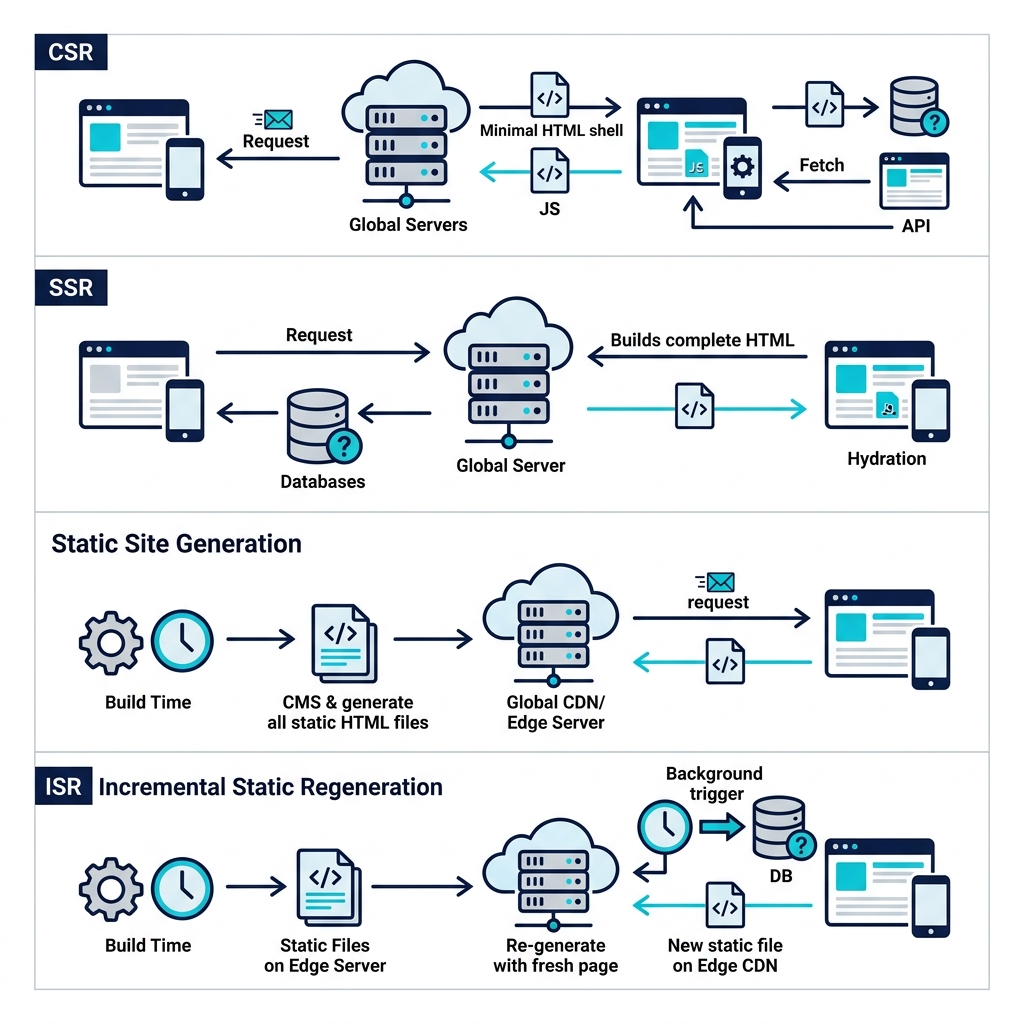

Modern rendering architectures: Data flow models for CSR, SSR, SSG, and ISR.

Hybrid Approaches and "Islands" Architecture

For massive systems with millions of products, hybrid solutions are inevitable. The Islands Architecture approach, popularized by Astro, keeps the page default at "Zero JS" (HTML-only) and only hydrates interactive sections (like a shopping cart or comment form) as independent "islands," maximizing performance. Tools like Hugo and mdBook push the boundaries of static production by processing thousands of pages of data in seconds.

3) Interactive Selection Guide: Which Architecture Fits You?

Choosing the right architecture determines the fate of the project. These four core questions will clarify your roadmap:

1. Is content primarily produced by an editor?

• Yes: Lean toward SSG (Astro/Hugo). Tools like Jekyll on GitHub Pages offer an exceptionally rigid security model; they restrict third-party plugins but make external code injection nearly impossible.
• No, it varies per user: Consider SSR/ISR (Next.js/Nuxt).

2. Is there real-time personalization?

• Yes: A hybrid (SSR + cache + edge middleware) architecture is more rational.
• No: SSG + island-based interactivity increases performance.

3. Is the team's maintenance capacity limited?

• Yes: Static architectures with low runtime are operationally more secure. Patch management and server monitoring overhead are minimized.
• No: More complex, container-based microservice structures can be managed.

4. Is the publishing frequency very high (every minute)?

• Yes: ISR or Next.js' "on-demand rebuild" capabilities are unrivaled.
• No: Pure SSG (Static Site Generation) is a solid choice.

4) Technology Stacks: Exploring Modern Architectures

Success in the web ecosystem comes from the right technology choice that balances performance, security, and operational sustainability. Let's take a deep dive into the popular tech stacks that set industry standards, from monolithic structures to modern distributed microservices.

1. LAMP Stack: The Classic Giant of the Web

(Linux, Apache, MySQL, PHP/Python/Perl)

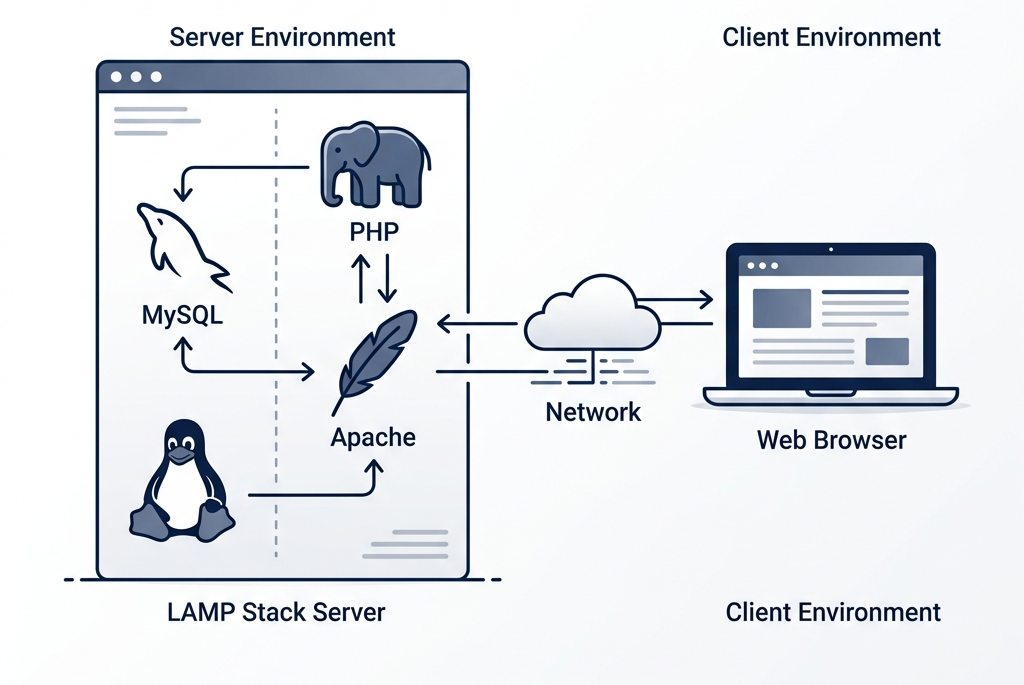

LAMP Architecture: Server-Side Rendering flow combining Linux, Apache, MySQL, and PHP.

Powering a vast majority of the internet for over two decades (especially traditional CMSs like WordPress, Drupal, and Joomla), LAMP is the classic example of monolithic architecture.

• Architectural Approach: Based on Server-Side Rendering (SSR). Every request from the client is handled by Apache, PHP communicates with the database (MySQL), HTML is compiled on the server and sent to the browser.
• Advantages: Incredibly simple to set up and runs smoothly even in shared hosting environments. Solutions exist for almost every problem encountered online.
• Disadvantages and Security: Difficult to scale vertically (increasing server hardware) under heavy traffic. Furthermore, old or unpatched PHP plugins can open doors to serious siber risk like RCE or SQL Injection.

2. MERN and MEAN Stack: "JavaScript Everywhere"

(MongoDB, Express.js, React/Angular, Node.js)

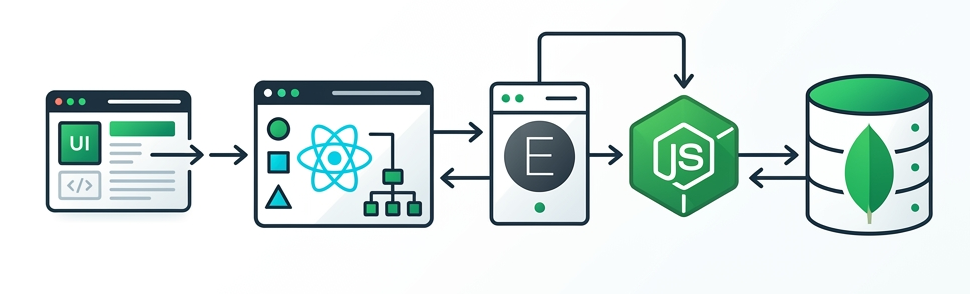

MERN Architecture: JSON-based data flow with MongoDB, Node.js and React frontend.

These stacks, which revolutionized web development, offer the ability to use a single language (JavaScript/TypeScript) on both the server (Node.js) and the client (React/Angular). The database layer features MongoDB, a flexible, document-based NoSQL solution.

• Architectural Approach: Ideal for building Client-Side Rendering (CSR) or SSR-supported Single Page Application (SPA) architectures via meta-frameworks like Next.js.
• Use Case: Performs excellently in modern applications with constantly changing schemas, requiring fast prototyping, or containing real-time data streams (messaging, live streaming).
• Security Perspective (Supply Chain Risks): The biggest handicap of the Node.js ecosystem is the massive dependency tree. A single MERN project can involve hundreds of nested NPM packages. Since this massive ecosystem creates a broad surface for malicious code injections (supply chain attacks), it requires strict static code analysis and continuous dependency auditing.

3. PERN Stack: Corporate Data Integrity and Power

(PostgreSQL, Express.js, React, Node.js)

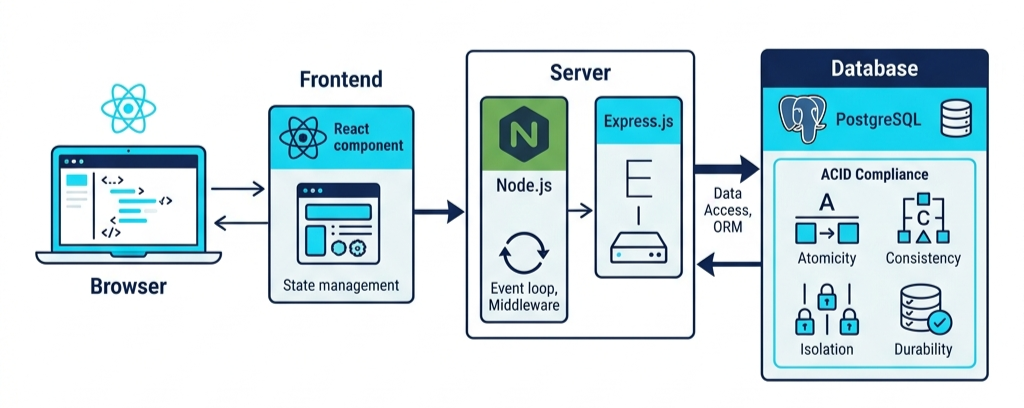

PERN Architecture: Enterprise-grade data integrity guaranteed by PostgreSQL ACID compliance.

The NoSQL flexibility of MERN is not suitable for every scenario. Particularly in projects where relational data is at the center—such as e-commerce, B2B platforms, or multi-dimensional product management (e.g., complex inventory tracking for hardware or wholesale supply systems)—the PERN stack comes into play.

• Architectural Approach: Uses PostgreSQL, the world's most advanced open-source relational database, instead of MongoDB.
• Advantages: Data integrity is guaranteed thanks to PostgreSQL's flawless ACID compliance. If an error occurs in the payment system while an order is being completed, the database immediately rolls back the transaction, preventing asymmetrical data formation.
• Why PERN? It is the number one choice for modern projects, SaaS applications, and e-commerce infrastructures that want to use Node.js' asynchronous speed and React's dynamic UI power while maintaining a data architecture as rigid and secure as banking systems.

4. JAMstack: The Peak of Static Production and Edge Computing

(JavaScript, APIs, Markup)

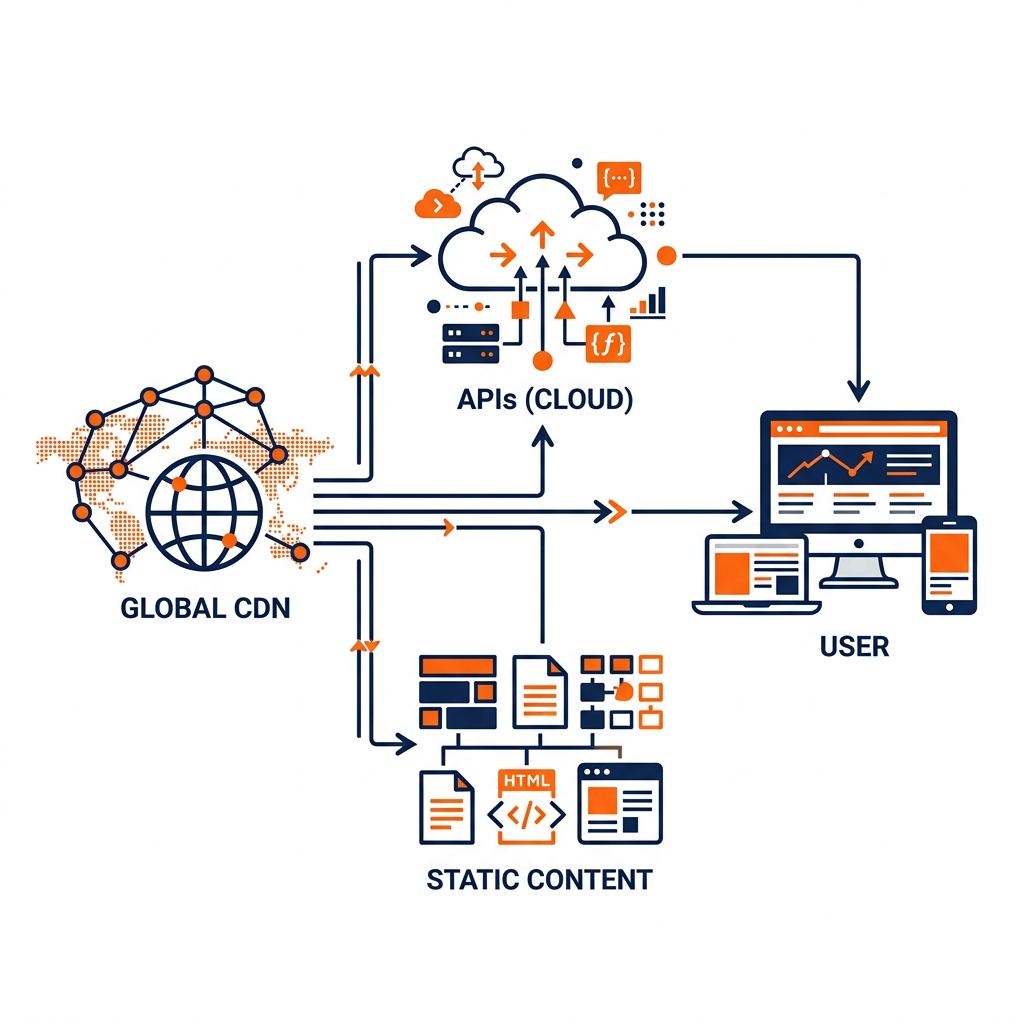

JAMstack Architecture: Decoupled serverless distribution via Global CDNs and APIs.

This is the systematized version of the concepts discussed in the SSG section. It completely isolates the server and database layer from the user. Database and backend logic are offloaded to microservices or Headless CMSs (e.g., Strapi, Sanity). The frontend (Astro, Hugo, Next.js, etc.) fetches data from APIs at build time, generates HTML, and distributes these static files to global CDNs. It is unique in terms of cybersecurity because there is no server to hack or database to access directly.

5. .NET Stack: High-Performance Corporate Power

(C#, ASP.NET Core, Entity Framework, SQL Server / PostgreSQL)

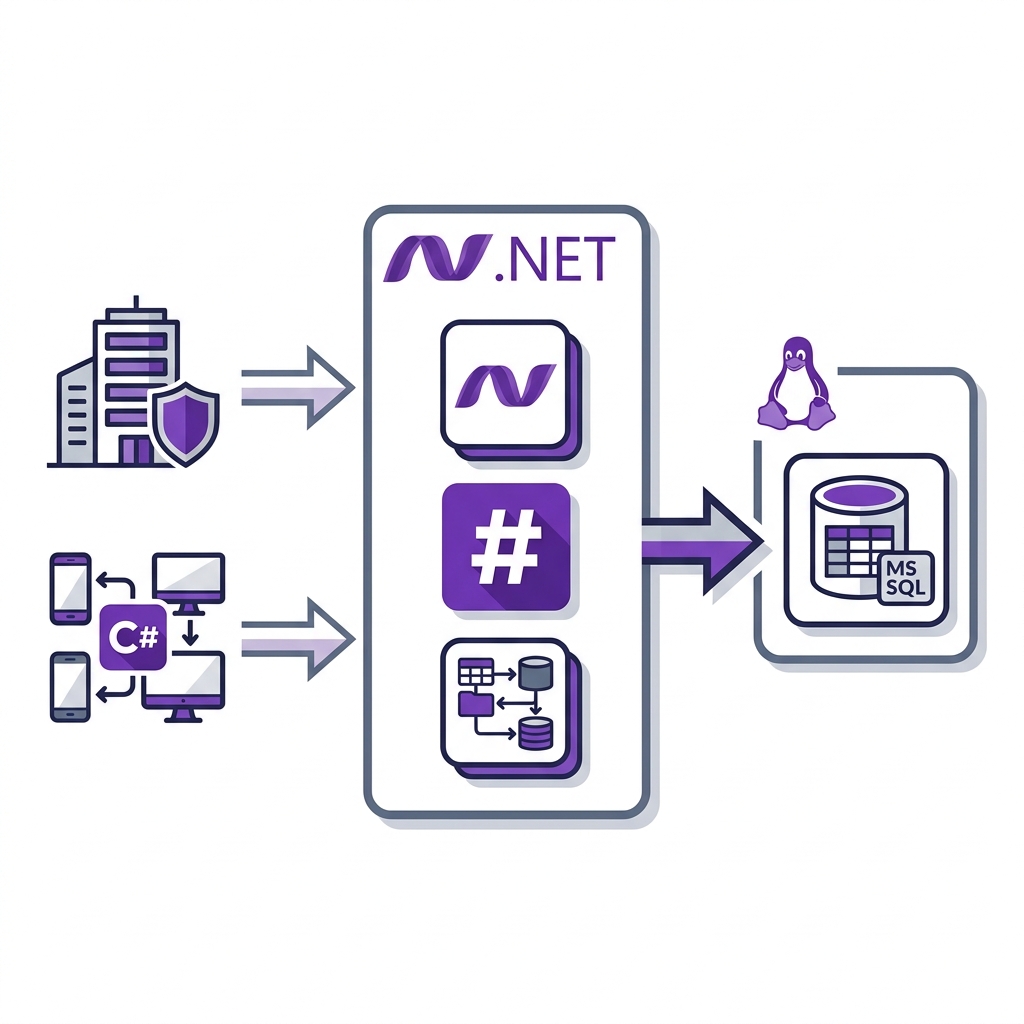

Modern .NET Architecture: Open-source, cross-platform power utilizing ASP.NET Core and EF Core.

The era of the old .NET Framework, which was closed-source and dependent only on Windows servers, is long gone. Today, "Modern .NET" (formerly .NET Core) is a fully open-source, cross-platform, and incredibly fast ecosystem supported by Microsoft, running flawlessly on Linux and macOS.

• Architectural Approach: At its center is C#, an object-oriented language with strong type safety. ASP.NET Core is used on the backend for everything from massive monolithic structures to lightweight Minimal APIs. Database communication is handled through Entity Framework Core, one of the world's most advanced ORM tools.
• Use Case: Banking systems, massive ERP software, health information systems, and microservice-based cloud architectures. In high-CPU intensive tasks where Node.js' single-threaded structure might struggle, .NET's multi-threaded and asynchronous capabilities yield excellent results.
• Security and Performance: Being "secure by default" is the biggest reason for its preference in enterprise projects. The ASP.NET Core Identity system standardizes processes such as authentication, authorization, and multi-factor authentication (MFA).

Big Data and Event-Driven Ecosystems

As a system grows, direct API calls create bottlenecks. At this point, asynchronous messaging comes into play to separate background services and logs. Using Apache Kafka, all system events are written to disk as a persistent stream. In processing massive security logs (SIEM) or product analytics data, Kafka and Apache Spark running on top represent the pinnacle of data engineering.

5) DevSecOps and Infrastructure: End-to-End Architecture from Security to Deployment

How code is opened to the internet and protected (DevSecOps) is as much a part of modern engineering as the quality of the code itself. Application security is no longer just about whether "the code contains vulnerabilities." In the current landscape, the most critical area is software supply chain security.

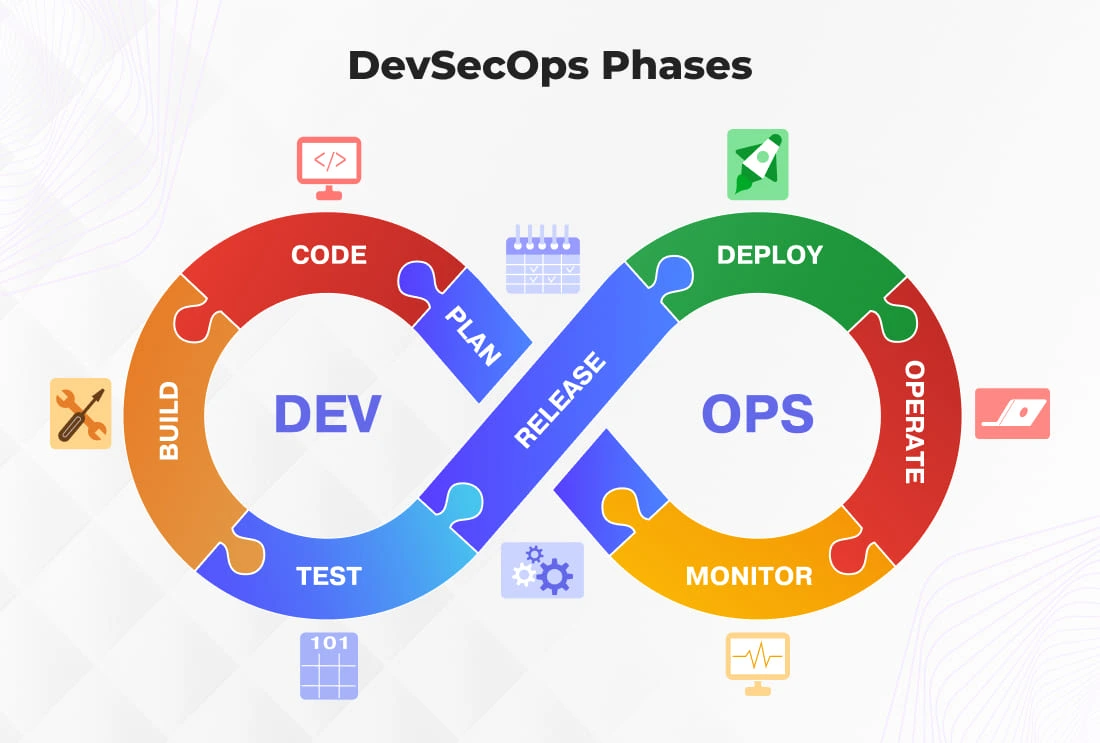

DevSecOps integration in modern CI/CD processes: Build, Scan, and Deploy security.

Software Supply Chain Risks

Modern frameworks (Next.js, NuxtJS, Astro) come with massive NPM dependency trees. Even an empty project can pull in tens of thousands of external packages. The 2025 MFA phishing attacks and crypto-wallet draining malware that hit the NPM ecosystem proved that these dependencies are the largest attack surface. Therefore, deployment environments must be much more strictly isolated.

• Lockfile Enforcement: Prevent "version hijacking" attacks by pinning dependency versions.
• SCA and SBOM: SCA and SBOM scans (CycloneDX/SPDX) should be mandatory at every build.
• GitHub Actions: This is the heart of CI/CD. The moment a developer pushes code, the pipeline is triggered. Here, not just builds are performed; the code undergoes dependency scans and secret scanning (API key leak prevention) before going live.

Containers, Proxmox, and the Homelab Approach

Modern web projects run on lightweight Container (Docker) architectures that logically partition hardware. Containers share the host's Linux Kernel and are autonomous, having largely replaced Virtual Machines (VMs). Microservices we test in our Proxmox-based homelab environments today can be moved to massive production Kubernetes clusters with the exact same stability.

Cloudflare, Edge Computing, and Zero Trust

Cloudflare stands in a unique position for the global distribution and protection of static or hybrid sites. Cloudflare Pages reads the output of Astro or Next.js projects directly from your GitHub repository, compiles it in seconds, and distributes it to CDN points worldwide.

Cloudflare architecture: Distributing content to global CDN nodes without server hosting, zeroing out the attack surface.

Cloudflare Workers, representing Edge Computing architecture, apply Web Application Firewall (WAF) rules long before they reach your application. In an open-source infrastructure (e.g., where you monitor system logs with Wazuh and authenticate with Authentik in your own cloud), Cloudflare Zero Trust steps in to encrypt your application, eliminate the need for a VPN, and ensure only verified users can access your backend systems.

6) Conclusion: Success Criteria and Architectural Anti-Patterns

Web development has moved beyond simple UI design into a holistic engineering discipline that manages big data, renders at the edge, and is immune to supply chain vulnerabilities. To achieve success, choosing the right framework is not enough; one must also avoid common pitfalls (anti-patterns) and perform constant measurement.

Common Pitfalls (Anti-Patterns)

• "Let's make everything SSG": Forcing real-time data (e.g., live stock prices) to be static increases complexity and produces brittle code. Adopt an ISR strategy for dynamic data at static speeds.
• "Performance increases automatically with a framework change": Changing just the framework without image optimization (WebP/AVIF) and a script budget provides only a temporary boost in Lighthouse scores without improving the real user experience.
• "We'll look at CI/CD security later": Postponing supply chain risk invites secret leaks and critical data loss. Security must be integrated into the pipeline on day one.
• "SEO is just meta tags": Neglecting technical SEO (crawlability, canonicalization, structured data) restricts visibility no matter how fast the architecture is.

Final Note: The Engineering Preference Is More Important Than the Tool

In conclusion, there is no such thing as the "best tool"; there is only the right engineering approach for your project's character, team capacity, and security requirements. Using the dynamism of PERN and Next.js for e-commerce while not neglecting security scans in your CI/CD pipelines; and combining the speed of Cloudflare Pages with tools like Astro/Hugo for static documentation or personal projects, is the key to modern web architecture. Success is delivered by the balance of performance, security, and operational sustainability.
